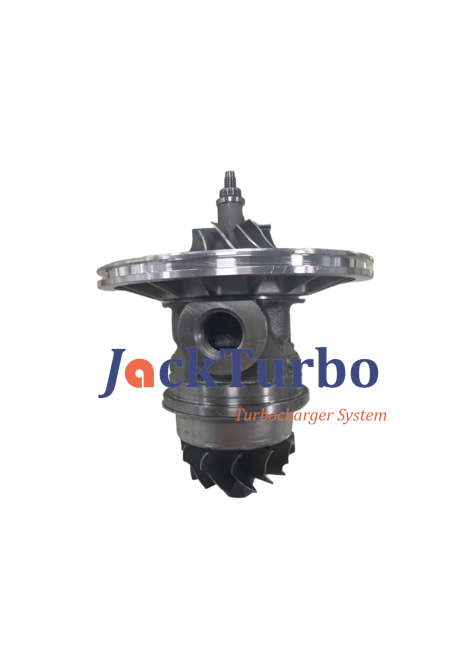

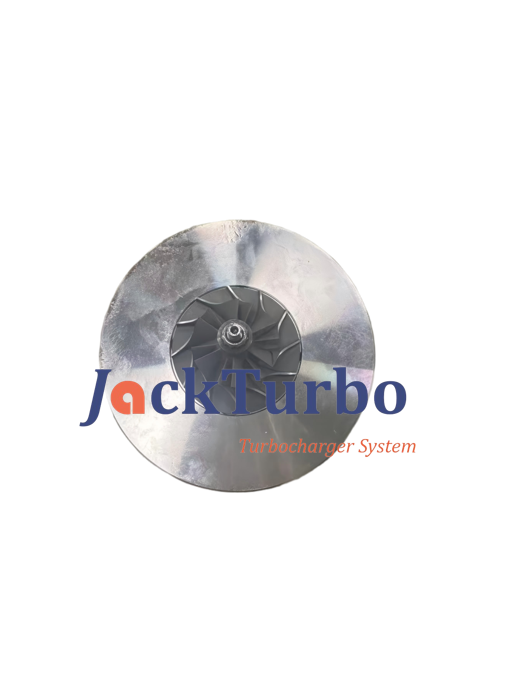

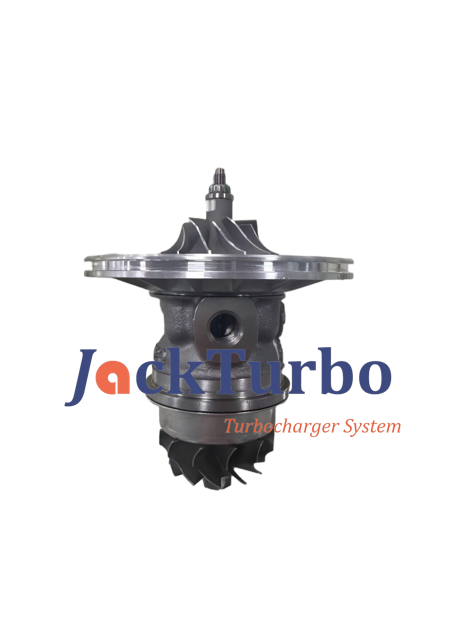

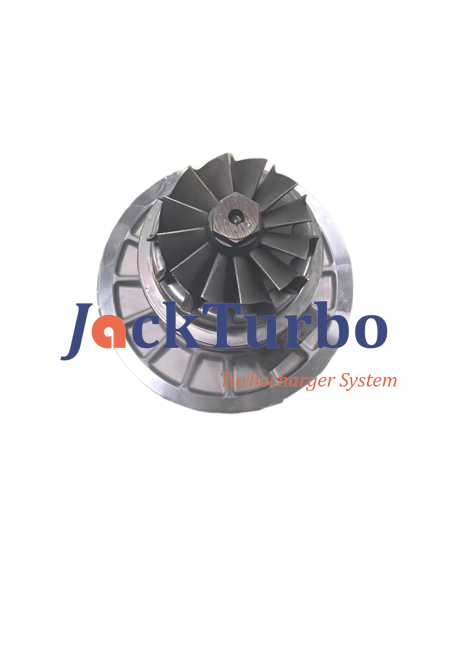

Turbo Parts No.:5314-970-6400, 5314-970-6401, 5314-970-6417
OE No.:12270398, 6-0529-20-0-0090, 12270783EZ
Turbo Model:K14
Turbo Brand:KKK
Car Application:MWM Tractor TD226-3 1991 ；MWM Tractor TD226B-3 1987 ；Deutz Tractor TD226B-3 1991
JACK ID:2-00-0896A
Details
CHRA Balancing Test: <0.5Mg.mm / 150000RPM
Shaft wheel material: K418+42CrMo
Compressor wheel material: C355 for normal or 2618 for billet
Bearing Housing material: HT250 Gray Iron and high Ni for shift link arm
Back plate material: ADC12 YL102 or Iron for some big models.
Nozzle ring material: K418
Thrust bearing material：Brass Bar Fluorine Gum
O-ring material: Fluorine Gum
Thrust collar material: 42CrMo
Piston Ring material: W6+ 3Cr13
