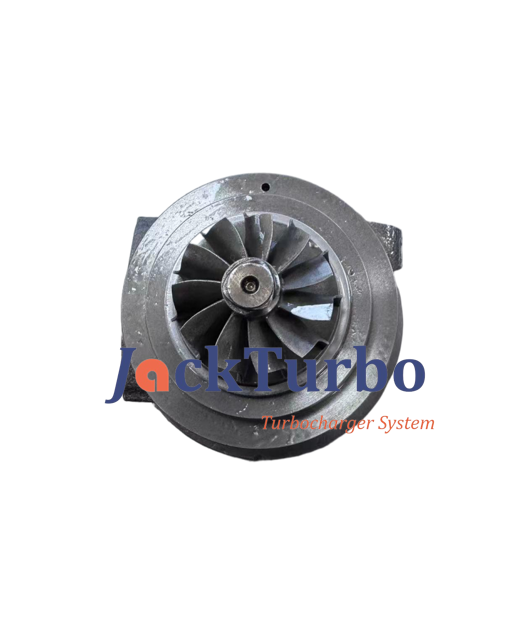

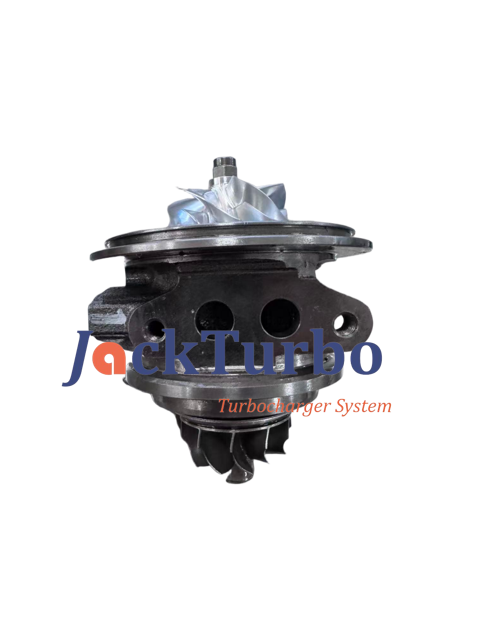

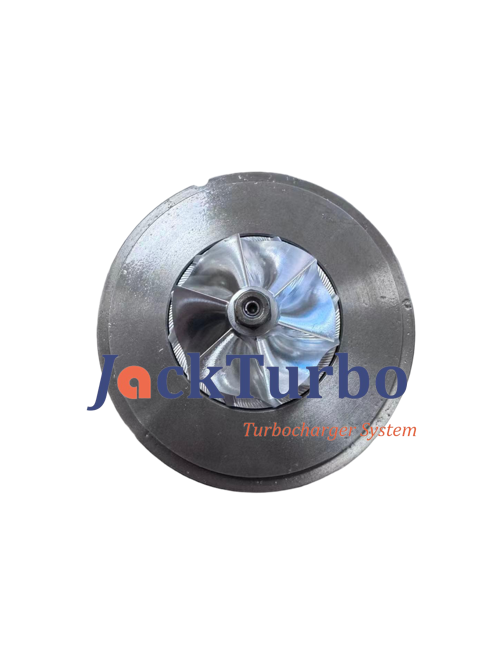

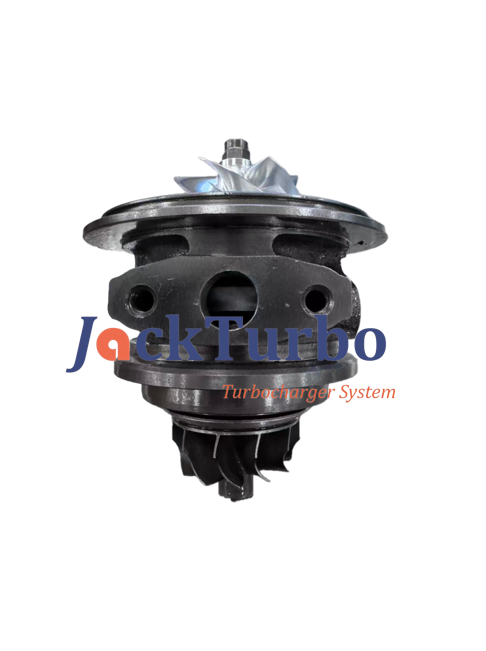

Turbo Parts No.:49373-07011, 49373-07012, 49373-07013, 49373-07114, 49373-07102, 49373-07000
OE No.:MA17122110046, MC18012020233, MC19022110053 MT17040370364, 18900-5AA-A011M3, MC19123011063, 15060400479
Turbo Model:TD025L4B
Turbo Brand:MHI
Car Application:Honda Civic 1.5T VTEC R4 Gasoline 2016-2017 Honda Civic / Accord 1.5T VTEC R4 Gasoline 2016-2017
JACK ID:5-00-1418X
Details
CHRA Balancing Test: <0.5Mg.mm / 150000RPM
Shaft wheel material: K418+42CrMo
Compressor wheel material: C355 for normal or 2618 for billet
Bearing Housing material: HT250 Gray Iron and high Ni for shift link arm
Back plate material: ADC12 YL102 or Iron for some big models.
Nozzle ring material: K418
Thrust bearing material：Brass Bar Fluorine Gum
O-ring material: Fluorine Gum
Thrust collar material: 42CrMo
Piston Ring material: W6+ 3Cr13
